04701 BEAMGUARD HLL STANCHION - 24” Flange Size

04701 BEAMGUARD HLL STANCHION - 24” Flange Size

  • $1,325.00
    Unit price per
  • Save $161.00
Shipping calculated at checkout.

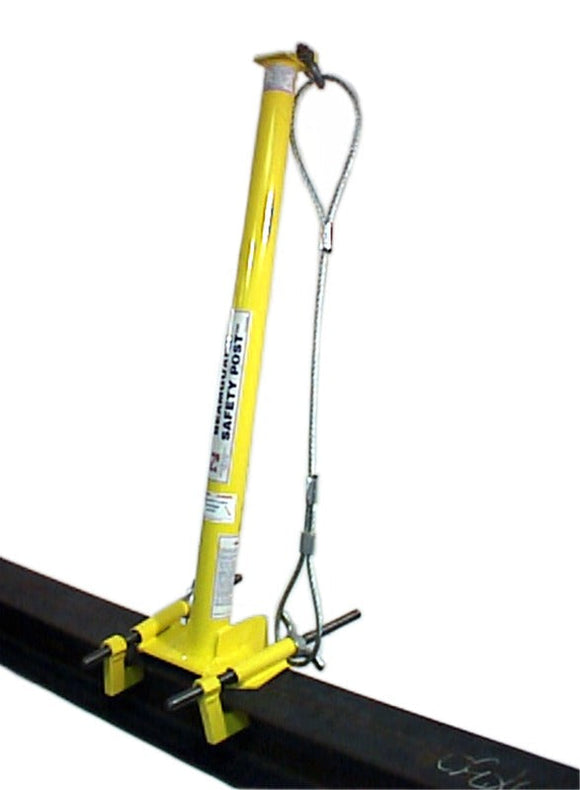

The anchor post component of a cable horizontal lifeline system for use on I-beams

The Beamguard HLL Stanchion is a component of a complete HLL system specifically intended for installation onto steel I-beams. It can be used in combination with any standard Guardian HLL system, and functions to elevate the system up off the beam to help reduce clearance requirements and prevent system impact with sharp edges and surfaces. The Beamguard Stanchion can also function as a standalone anchor point.

SKU: 04701

**CS CUSTOMER FLANGE REQUIRMENTS ** Intermediate Beamguard - Standard Base - 24" Rod and intermediate flange hook.  Fits a flange thickness up to 2 1/8" and width of 4"-19 3/4"

FEATURES

  • Manufactured from powder-coated steel to help resist abrasion/impact from tools or materials, as well as withstand prolonged exposure to wind and rain
  • Compatible with any Guardian HLL system for ultimate component flexibility
  • Accommodates HLL installation both in parallel and perpendicular to the I-beam
  • Clamps down to I-beam with no penetrations required



It is recommended to never exceed system lengths of 300' regardless of the HLL used with the Beamguard, however always defer to HLL system requirements, which in many cases limit maximum span length to shorter distances.
